SANDBOX IN-A-BOX

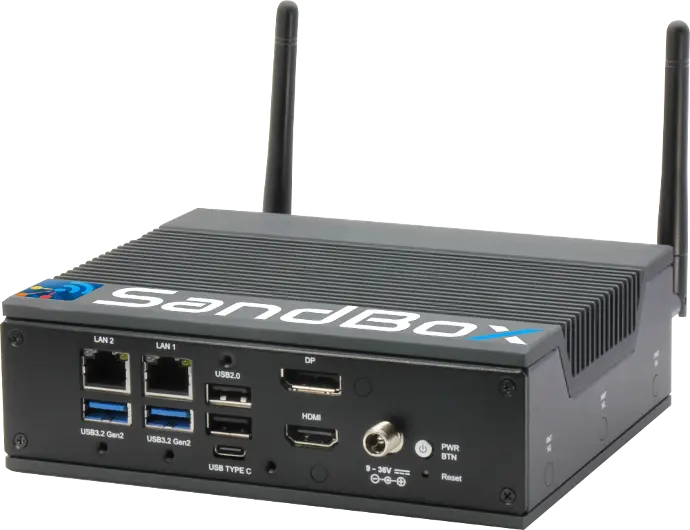

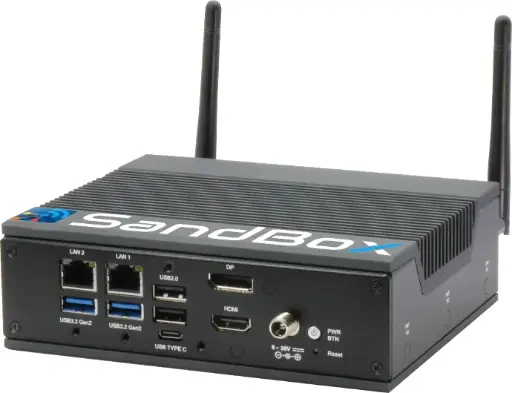

SandBox Blue

1.990,00

Description

Designed for Academia, Research Institutes, and general development, testing, and learning. Ideal for environments focused on innovation and education.

Software Stack

  • System:
    • SandBoxOS, Application Market, and OTA
  • Communication:
    • EMQX MQTT or Mosquitto or TBMQ, Kafka, and RabbitMQ
  • Monitoring:
    • cAdvisor, Grafana, and Prometheus
  • DataBase/QL:
    • GraphQL, Mongo, PostgreSQL, and Redis
  • IoT:
    • Sensors/Actuators Connectors, IoTool, and ThingsBoard
  • Automation /Dev:
    • n8n and Node-RED
  • AI:
    • Jupyter Notebook and TensorFlow
  • Tools:
    • Certificates, Code Server, File Browser, KeyCloak, Proxy Manager, Portainer, PassBolt, and Terminal
  • Optional:
      • OPC-UA and SparkPlug-B
  • More…

    Specification

    General Specifications:

    • Mainboard: Intel® NUC 12 Compute Element i5, 8GB LPDDR5
    • Processor: Intel® Core™ i5-1235U Processor (up to 4.40 GHz)
    • Graphics: Intel® Iris® Xe Graphics
    • Memory: 8GB
    • Storage: 256GB M.2 PCIe Gen 4 x4 SSD
    • BIOS: UEFI
    • Real-Time Clock (RTC): Yes
    • Wake-on-LAN (WoL): Yes
    • Watchdog Timer: Yes
    • PXE: Yes
    • TPM: TPM2.0 on board
    • Dimensions: 5.98” x 4.9” x 1.8” (152 x 125 x 48mm)
    • Mounting Options: VESA mount, Optional wall mount

    Operating System:

    • SandBoxOS

    Display and I/O Ports:

    • Display Ports: 1 x HDMI 2.0b, 1 x DP 1.4, and 1 x DP 1.4a via USB Type C
    • USB Ports: 2 x USB 2.0 Type A, 2 x USB 3.2 Gen2 Type A, 1 x USB 3.2 Gen1 Type C (Supports DP)
    • Audio Ports: 1 x Mic-in, 1 x Line out
    • Serial Port: 2 x RS-232/422/485 via 16-pin header

    Expansion and Connectivity:

    • Expansion Slots: 1 x M.2 3052 B-key, 1 x M.2 2280 PCIe Gen 3 x2 M-key, 1 x M.2 2280 PCIe Gen 4 x4 M-key
    • GPIO: Isolated GPIO 8 in/8 out pin header
    • Ethernet: 1 x GbE (Realtek RTL8111H), 1 x GbE (Intel® i219-LM), 1 x 2.5GbE (Intel® i225-IT)
    • Wi-Fi: 802.11ax, 2T2R, Intel® AX211 Wi-Fi 6E
    • Bluetooth: Bluetooth 5.3, Intel® AX211 Wi-Fi 6E
    • LTE / 4G / 5G: (via M.2 3052)

    Power Specifications:

    • Power Requirement: 9-36V DC In
    • Power Supply Type: Ø2.5 Lockable connector
    • Power Consumption (Typical): 96.6W (8.05A@12V)

    Environmental and Certification:

    • Cooling: Passive cooling (fanless)
    • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
    • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
    • Certifications: CE-RED/FCC Class A, RoHS Compliant, REACH, MIL-STD-202G, IEC 60068-2-6, IEC 60068-2-64

    Package and Longevity:

    • Net Weight: 1 kg
    • Gross Weight: 1.5 kg
    • Package Dimensions: TBD
    • HS Code: 8471500000
    • Country of Origin: Taiwan
    • Longevity: 2027

    Accessories Included:

    • Screw bag for VESA mount, 2 x Wi-Fi antenna, 2 x Plug & push terminal block, 1 x 120W power adapter, 2x Power cord (EU & USA)

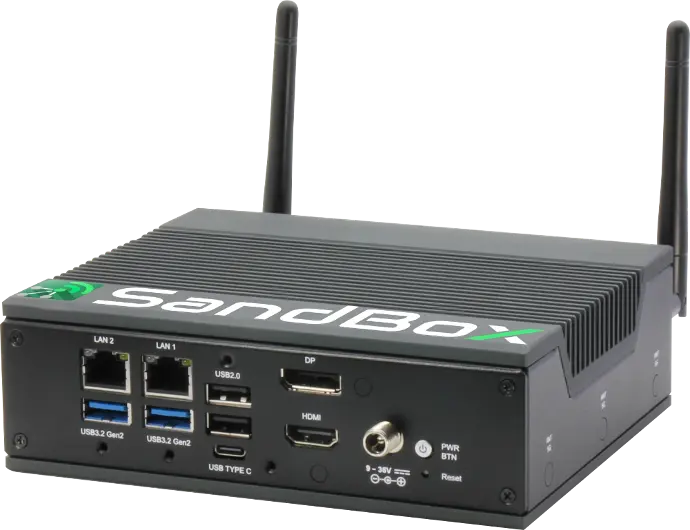

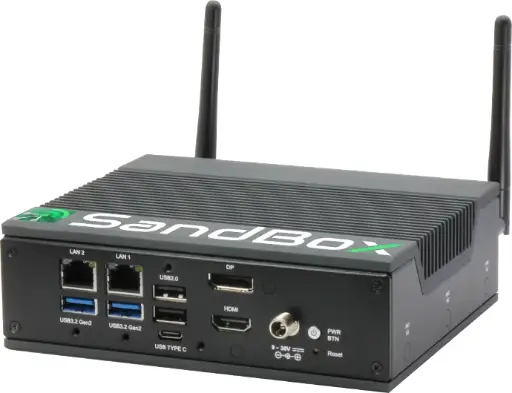

    SandBox Green

    1.990,00

    Description

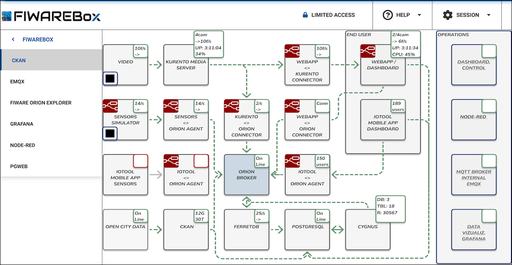

    Targeted towards Greentech, Smart Cities, and similar fields. This version is fine-tuned for sustainability-focused technologies and urban development solutions.

    Software Stack

    • System:
      • SandBoxOS, Application Market, and OTA
    • Communication:
      • Kafka and Orion Broker
    • Monitoring:
      • cAdvisor, Grafana, and Prometheus
    • DataBase/QL:
      • GraphQL, Mongo, PostgreSQL, and Redis
    • IoT:
      • Sensors/Actuators Connectors, IoTool, ThingsBoard, and FIWARE
    • Automation /Dev:
      • n8n and Node-RED
    • AI:
      • Jupyter Notebook and TensorFlow
    • Tools:
      • Certificates, Code Server, File Browser, KeyCloak, Proxy Manager, PassBolt, Portainer, and Terminal
    • More…

      Specification

      General Specifications:

      • Mainboard: Intel® NUC 12 Compute Element i5, 8GB LPDDR5
      • Processor: Intel® Core™ i5-1235U Processor (up to 4.40 GHz)
      • Graphics: Intel® Iris® Xe Graphics
      • Memory: 8GB
      • Storage: 256GB M.2 PCIe Gen 4 x4 SSD
      • BIOS: UEFI
      • Real-Time Clock (RTC): Yes
      • Wake-on-LAN (WoL): Yes
      • Watchdog Timer: Yes
      • PXE: Yes
      • TPM: TPM2.0 on board
      • Dimensions: 5.98” x 4.9” x 1.8” (152 x 125 x 48mm)
      • Mounting Options: VESA mount, Optional wall mount

      Operating System:

      • SandBoxOS

      Display and I/O Ports:

      • Display Ports: 1 x HDMI 2.0b, 1 x DP 1.4, and 1 x DP 1.4a via USB Type C
      • USB Ports: 2 x USB 2.0 Type A, 2 x USB 3.2 Gen2 Type A, 1 x USB 3.2 Gen1 Type C (Supports DP)
      • Audio Ports: 1 x Mic-in, 1 x Line out
      • Serial Port: 2 x RS-232/422/485 via 16-pin header

      Expansion and Connectivity:

      • Expansion Slots: 1 x M.2 3052 B-key, 1 x M.2 2280 PCIe Gen 3 x2 M-key, 1 x M.2 2280 PCIe Gen 4 x4 M-key
      • GPIO: Isolated GPIO 8 in/8 out pin header
      • Ethernet: 1 x GbE (Realtek RTL8111H), 1 x GbE (Intel® i219-LM), 1 x 2.5GbE (Intel® i225-IT)
      • Wi-Fi: 802.11ax, 2T2R, Intel® AX211 Wi-Fi 6E
      • Bluetooth: Bluetooth 5.3, Intel® AX211 Wi-Fi 6E
      • LTE / 4G / 5G: (via M.2 3052)

      Power Specifications:

      • Power Requirement: 9-36V DC In
      • Power Supply Type: Ø2.5 Lockable connector
      • Power Consumption (Typical): 96.6W (8.05A@12V)

      Environmental and Certification:

      • Cooling: Passive cooling (fanless)
      • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
      • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
      • Certifications: CE-RED/FCC Class A, RoHS Compliant, REACH, MIL-STD-202G, IEC 60068-2-6, IEC 60068-2-64

      Package and Longevity:

      • Net Weight: 1 kg
      • Gross Weight: 1.5 kg
      • Package Dimensions: TBD
      • HS Code: 8471500000
      • Country of Origin: Taiwan
      • Longevity: 2027

      Accessories Included:

      • Screw bag for VESA mount, 2 x Wi-Fi antenna, 2 x Plug & push terminal block, 1 x 120W power adapter, 2x Power cord (EU & USA)

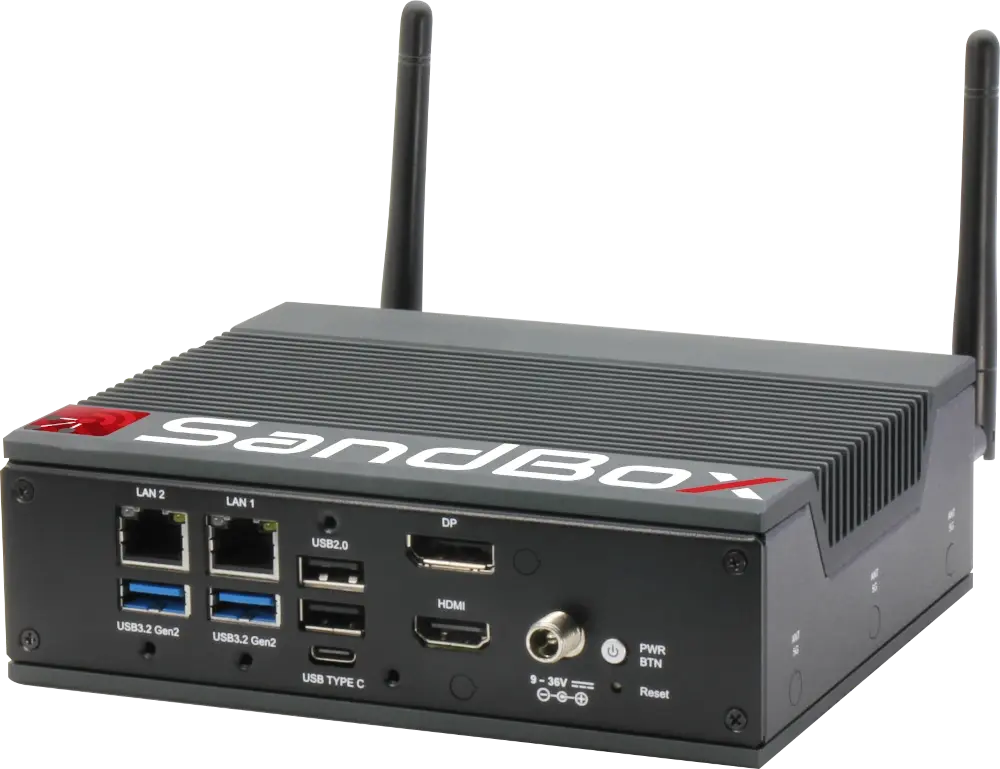

      SandBox Red

      1.990,00

      Description

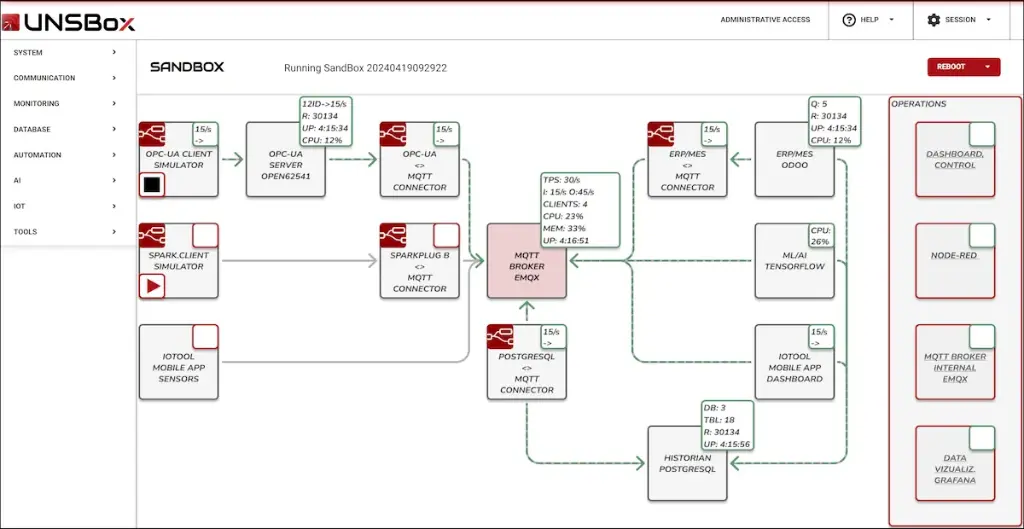

      Specialized in collecting and transferring vital sensor and machine data. It’s designed to enhance IoT Edge applications in manufacturing and logistics, seamlessly linking with the SandBox for smarter, more efficient industrial operations.

      Software Stack

      • System:
        • SandBoxOS, Application Market, and OTA
      • Communication:
        • EMQX MQTT and Kafka
      • Monitoring:
        • cAdvisor, Grafana, and Prometheus
      • DataBase/QL:
        • GraphQL, PostgreSQL, and Redis
      • IoT:
        • Sensors/Actuators Connectors, IoTool, OPC-UA, SparkPlug-B, and ThingsBoard
      • Automation /Dev:
        • Node-RED
      • AI:
        • Jupyter Notebook and TensorFlow
      • Tools:
        • Certificates, Code Server, File Browser, KeyCloak, PassBolt, Proxy Manager, Portainer, and Terminal
      • More…

        Specification

        General Specifications:

        • Mainboard: Intel® NUC 12 Compute Element i5, 8GB LPDDR5
        • Processor: Intel® Core™ i5-1235U Processor (up to 4.40 GHz)
        • Graphics: Intel® Iris® Xe Graphics
        • Memory: 8GB
        • Storage: 256GB M.2 PCIe Gen 4 x4 SSD
        • BIOS: UEFI
        • Real-Time Clock (RTC): Yes
        • Wake-on-LAN (WoL): Yes
        • Watchdog Timer: Yes
        • PXE: Yes
        • TPM: TPM2.0 on board
        • Dimensions: 5.98” x 4.9” x 1.8” (152 x 125 x 48mm)
        • Mounting Options: VESA mount, Optional wall mount

        Operating System:

        • SandBoxOS

        Display and I/O Ports:

        • Display Ports: 1 x HDMI 2.0b, 1 x DP 1.4, and 1 x DP 1.4a via USB Type C
        • USB Ports: 2 x USB 2.0 Type A, 2 x USB 3.2 Gen2 Type A, 1 x USB 3.2 Gen1 Type C (Supports DP)
        • Audio Ports: 1 x Mic-in, 1 x Line out
        • Serial Port: 2 x RS-232/422/485 via 16-pin header

        Expansion and Connectivity:

        • Expansion Slots: 1 x M.2 3052 B-key, 1 x M.2 2280 PCIe Gen 3 x2 M-key, 1 x M.2 2280 PCIe Gen 4 x4 M-key
        • GPIO: Isolated GPIO 8 in/8 out pin header
        • Ethernet: 1 x GbE (Realtek RTL8111H), 1 x GbE (Intel® i219-LM), 1 x 2.5GbE (Intel® i225-IT)
        • Wi-Fi: 802.11ax, 2T2R, Intel® AX211 Wi-Fi 6E
        • Bluetooth: Bluetooth 5.3, Intel® AX211 Wi-Fi 6E
        • LTE / 4G / 5G: (via M.2 3052)

        Power Specifications:

        • Power Requirement: 9-36V DC In
        • Power Supply Type: Ø2.5 Lockable connector
        • Power Consumption (Typical): 96.6W (8.05A@12V)

        Environmental and Certification:

        • Cooling: Passive cooling (fanless)
        • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
        • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
        • Certifications: CE-RED/FCC Class A, RoHS Compliant, REACH, MIL-STD-202G, IEC 60068-2-6, IEC 60068-2-64

        Package and Longevity:

        • Net Weight: 1 kg
        • Gross Weight: 1.5 kg
        • Package Dimensions: TBD
        • HS Code: 8471500000
        • Country of Origin: Taiwan
        • Longevity: 2027

        Accessories Included:

        • Screw bag for VESA mount, 2 x Wi-Fi antenna, 2 x Plug & push terminal block, 1 x 120W power adapter, 2x Power cord (EU & USA)

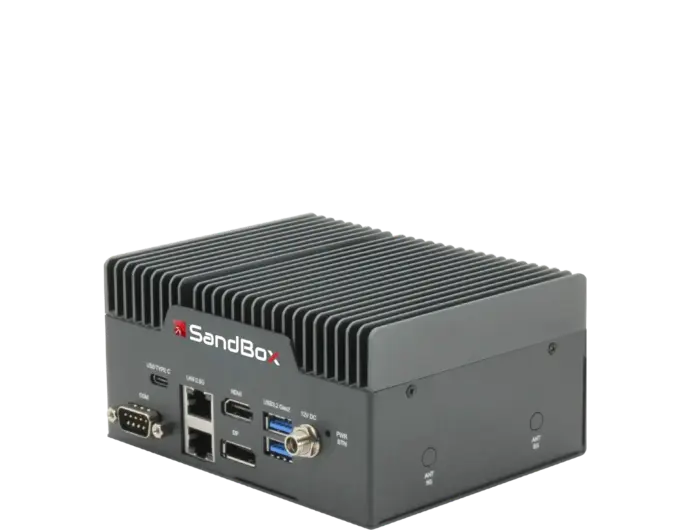

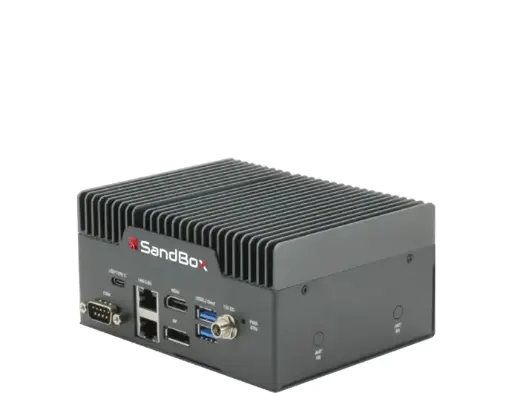

        SandBox Edge

        990,00

        Description

        Specialized in collecting and transferring vital sensor and machine data. It’s designed to enhance IoT Edge applications in manufacturing and logistics, seamlessly linking with the SandBox for smarter, more efficient industrial operations.

        Software Stack

          • System:
            • SandBoxOS, Application Market, and OTA
          • Communication:
            • EMQX MQTT or Mosquitto or TBMQ, Kafka, and RabbitMQ
          • Monitoring:
            • cAdvisor, Grafana, and Prometheus
          • DataBase/QL:
            • GraphQL, Mongo, PostgreSQL, and Redis
          • IoT:
            • Sensors/Actuators Connectors, IoTool, and ThingsBoard
          • Automation /Dev:
            • n8n and Node-RED
          • AI:
            • Jupyter Notebook and TensorFlow
          • Tools:
            • Certificates, Code Server, File Browser, KeyCloak, Proxy Manager, Portainer, PassBolt, and Terminal
          • Optional:
              • OPC-UA and SparkPlug-B
          • More…

        Specification

        General Specifications:

        • Processor: Intel® Processor N97
        • Graphics: Intel® UHD Graphics Gen 12
        • VPU: Optional (via M.2 2280)
        • Memory: 4GB
        • Storage: eMMC 32GB
        • Expansion Slot: M.2 2280 M key (PCIe Gen 3 x2, USB2.0)
        • FPGA: Lattice
        • BIOS: UEFI
        • Real-Time Clock (RTC): Yes
        • Wake-on-LAN (WoL): Yes
        • Watchdog Timer: Yes
        • PXE: Yes
        • TPM: TPM2.0 on board
        • Dimensions: 5.27” x 4.13” x 2.56” (134 × 105 x 65mm)

        Operating System:

        • SandBoxOS

        Display and I/O Ports:

        • Display Ports: 1 x HDMI 2.0b, 1 x DP 1.2, and 1 x DP 1.4a via USB Type C
        • USB Ports: 2 x USB 2.0 via 10-pin wafer, 2 x USB 3.2 Gen 2 Type A, and 1 x USB 3.2 Gen 2 Type C
        • Audio Ports: 1 x Audio Jack (Mic-in, Line out)
        • Serial Port: 2 x RS-232/422/485
        • Expansion Slots: 1 x M.2 2230 E key (CNVI, PCIe Gen 3 x1, USB2.0), 1 x M.2 3052 B Key (USB3.2 Gen 2 only) with Nano SIM slot, and GPIO: 1 x 40-pin GPIO

        Connectivity:

        • Ethernet: 2 x 2.5GbE (Intel® i226IT)
        • Wi-Fi: Optional (via M.2 2230)
        • Bluetooth: Optional (via M.2 2230)
        • LTE / 4G / 5G: Optional (via M.2 3052)

        Power:

        • Power Requirement: 12V DC-in
        • Power Supply Type: AT/ATX mode
        • Power Consumption (Typical): Depends on the processor model

        Environmental & Certification:

        • Cooling: Passive cooling (fanless)
        • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
        • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
        • MTBF (Hours): 422,053
        • Certification: CE/FCC Class A, RoHS Compliant, REACH

        Package:

        • Net Weight: 950 g
        • Gross Weight: 1.3 kg
        • Package Dimension (L x W x H): 157 x 147 x 68 mm
        • HS Code: 8473302000
        • Country of Origin: Taiwan
        • Longevity: 2038

        SANDBOX PRIVATE CLOUD

        SandBox Cloud

        350,00  every month

        Description

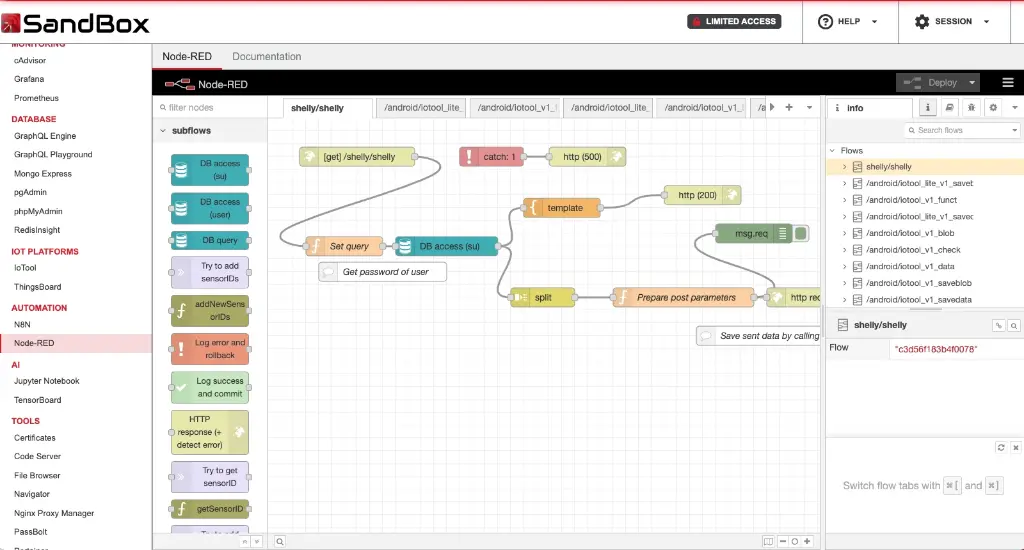

        SandBox Private Cloud is a cloud-based, scalable IoT platform, offering flexibility and efficiency beyond traditional systems. It eliminates on-premises hardware, reducing costs and space, while providing seamless updates, enhanced security, and real-time data handling in the cloud.

        Software Stack

        • System:
          • SandBoxOS, Application Market, and OTA
        • Communication:
          • EMQX MQTT or Mosquitto or TBMQ, Kafka, and RabbitMQ
        • Monitoring:
          • cAdvisor, Grafana, and Prometheus
        • DataBase/QL:
          • GraphQL, Mongo, PostgreSQL, and Redis
        • IoT:
          • Sensors/Actuators Connectors, IoTool, and ThingsBoard
        • Automation /Dev:
          • n8n and Node-RED
        • AI:
          • Jupyter Notebook and TensorFlow
        • Tools:
          • Certificates, Code Server, File Browser, KeyCloak, Proxy Manager, Portainer, PassBolt, and Terminal
        • Optional:
            • OPC-UA and SparkPlug-B
        • More…

        Specification

        General Specifications:

        • 4 CPU, dedicated
        • Memory: 8GB
        • Storage: 50GB
        • Transfer: 5TB
        • Weekly Backup

        Location / Region:

        • Asia / India / Bangalore
        • Asia / Singapore
        • Australia / Sydney
        • America / Canada / Toronto
        • America / USA / New York
        • America / USA / San Francisco
        • Europe / GE / Frankfurt
        • Europe / NL / Amsterdam
        • Europe / UK / London
        • Asia / India / Bangalore





        CONSULTING, SANDBOX CUSTOM DEVELOPMENT AND SUPPORT

        Support Subscription 10h/mo

        Support Person

        800,00  every month

        Description

        Included in our service package is a dedicated 10-hour monthly support commitment, designed to seamlessly integrate with your IoT initiatives. Our support encompasses:

        1. General Technical IoT, Industry & SandBox Support: We provide expert assistance for a range of IoT devices, including specialized support for our SandBox device. Whether you’re facing technical challenges or need guidance on best practices, our team is here to help.
        2. Customization Development: Understanding that each business has unique needs, we offer custom development services. Our experts work closely with you to tailor IoT solutions that align perfectly with your specific operational requirements.
        3. Consulting: With our deep expertise in digitalization and Industry 4.0, we offer consulting services to help you navigate the complexities of modern technology landscapes. From strategy formulation to implementation, we guide you every step of the way.
        4. Allocated Monthly Support Hours: Each month, you have access to 10 hours of our expert support. This allocation is designed to ensure that your IoT systems run smoothly and efficiently, minimizing downtime and maximizing performance.

        Our team is committed to providing you with top-tier support, ensuring that your digital transformation journey is successful and hassle-free.

        Please note that our support structure is carefully designed to provide you with consistent, monthly assistance. To ensure the utmost efficiency and resource allocation, any unused hours from your 10-hour monthly support entitlement do not roll over to subsequent months. We encourage you to utilize these hours within each month to make the most of the support and expertise available to you, keeping your IoT systems and projects on the leading edge of efficiency and innovation.

        Support 1h

        Support Person

        120,00

        Description

        Included in our service package is a dedicated 1-hour support, designed to seamlessly integrate with your IoT initiatives. Our support encompasses:

        1. General Technical IoT, Industry & SandBox Support: We provide expert assistance for a range of IoT devices, including specialized support for our SandBox device. Whether you’re facing technical challenges or need guidance on best practices, our team is here to help.
        2. Customization Development: Understanding that each business has unique needs, we offer custom development services. Our experts work closely with you to tailor IoT solutions that align perfectly with your specific operational requirements.
        3. Consulting: With our deep expertise in digitalization and Industry 4.0, we offer consulting services to help you navigate the complexities of modern technology landscapes. From strategy formulation to implementation, we guide you every step of the way.

        Our team is committed to providing you with top-tier support, ensuring that your digital transformation journey is successful and hassle-free.

        Support 2h

        Support Person

        220,00

        Description

        Included in our service package is a dedicated 2-hour support, designed to seamlessly integrate with your IoT initiatives. Our support encompasses:

        1. General Technical IoT, Industry & SandBox Support: We provide expert assistance for a range of IoT devices, including specialized support for our SandBox device. Whether you’re facing technical challenges or need guidance on best practices, our team is here to help.
        2. Customization Development: Understanding that each business has unique needs, we offer custom development services. Our experts work closely with you to tailor IoT solutions that align perfectly with your specific operational requirements.
        3. Consulting: With our deep expertise in digitalization and Industry 4.0, we offer consulting services to help you navigate the complexities of modern technology landscapes. From strategy formulation to implementation, we guide you every step of the way.

        Our team is committed to providing you with top-tier support, ensuring that your digital transformation journey is successful and hassle-free.

        Support 10h

        Support Person

        1.000,00

        Description

        Included in our service package is a dedicated 10-hour support, designed to seamlessly integrate with your IoT initiatives. Our support encompasses:

        1. General Technical IoT, Industry & SandBox Support: We provide expert assistance for a range of IoT devices, including specialized support for our SandBox device. Whether you’re facing technical challenges or need guidance on best practices, our team is here to help.
        2. Customization Development: Understanding that each business has unique needs, we offer custom development services. Our experts work closely with you to tailor IoT solutions that align perfectly with your specific operational requirements.
        3. Consulting: With our deep expertise in digitalization and Industry 4.0, we offer consulting services to help you navigate the complexities of modern technology landscapes. From strategy formulation to implementation, we guide you every step of the way.

        Our team is committed to providing you with top-tier support, ensuring that your digital transformation journey is successful and hassle-free.

        Share This
