CONNECT RESEARCH AMBITIONS WITH IOT INSIGHTS

R&D IOT INNOVATION AND LEARNING HUB

DEDICATED TO R&D IN IOT AND DIGITALIZATION, THIS DEVICE SUPPORTS EXPERIMENTAL LEARNING, DEVELOPMENT, AND TESTING IN VARIOUS TECH FIELDS

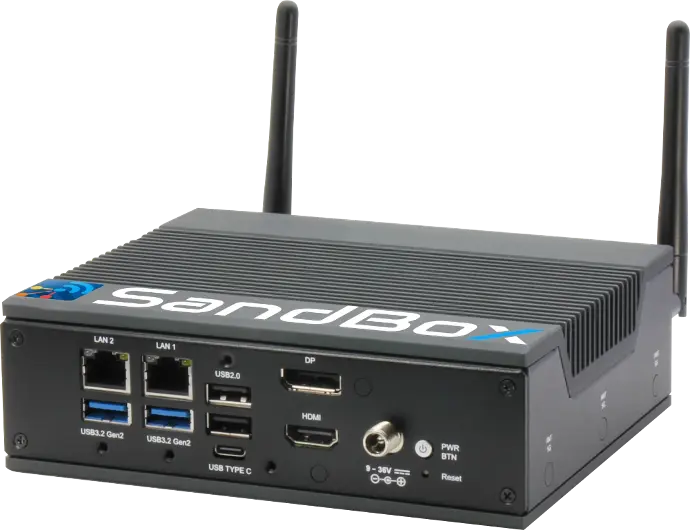

SANDBOX BLUE

SANDBOX BLUE

https://sandbox.engineering/web/image/product.template/39/image_1920?unique=756124a

Designed for Academia, Research Institutes, and general development, testing, and learning. Ideal for environments focused on innovation and education.

System:

  • SandBoxOS, Software Center, and OTA

Communication:

  • EMQX MQTT or Mosquitto or TBMQ, Kafka, and RabbitMQ

Monitoring:

  • cAdvisor, Grafana, and Prometheus

DataBase / QL:

  • GraphQL, PostgreSQL, and FerretDB

IoT:

  • Sensor and Actuator Connectors, IoTool, and ThingsBoard

Automation / Dev:

  • Node-RED

AI:

  • Jupyter Notebook and TensorFlow

Tools:

  • Certificates, Code Server, File Browser, KeyCloak, Proxy Manager, Portainer, and Terminal

Optional:

  • OPC-UA and SparkPlug-B

More…

General Specifications:

  • Mainboard: Intel® NUC 12 Compute Element i5, 8GB LPDDR5
  • Processor: Intel® Core™ i5-1235U Processor (up to 4.40 GHz)
  • Graphics: Intel® Iris® Xe Graphics
  • Memory: 8GB
  • Storage: 256GB M.2 PCIe Gen 4 x4 SSD
  • BIOS: UEFI
  • Real-Time Clock (RTC): Yes
  • Wake-on-LAN (WoL): Yes
  • Watchdog Timer: Yes
  • PXE: Yes
  • TPM: TPM2.0 on board
  • Dimensions: 5.98” x 4.9” x 1.8” (152 x 125 x 48mm)
  • Mounting Options: VESA mount, Optional wall mount

Operating System:

  • SandBoxOS

Display and I/O Ports:

  • Display Ports: 1 x HDMI 2.0b, 1 x DP 1.4, and 1 x DP 1.4a via USB Type C
  • USB Ports: 2 x USB 2.0 Type A, 2 x USB 3.2 Gen2 Type A, 1 x USB 3.2 Gen1 Type C (Supports DP)
  • Audio Ports: 1 x Mic-in, 1 x Line out
  • Serial Port: 2 x RS-232/422/485 via 16-pin header

Expansion and Connectivity:

  • Expansion Slots: 1 x M.2 3052 B-key, 1 x M.2 2280 PCIe Gen 3 x2 M-key, 1 x M.2 2280 PCIe Gen 4 x4 M-key
  • GPIO: Isolated GPIO 8 in/8 out pin header
  • Ethernet: 1 x GbE (Realtek RTL8111H), 1 x GbE (Intel® i219-LM), 1 x 2.5GbE (Intel® i225-IT)
  • Wi-Fi: 802.11ax, 2T2R, Intel® AX211 Wi-Fi 6E
  • Bluetooth: Bluetooth 5.3, Intel® AX211 Wi-Fi 6E
  • LTE / 4G / 5G: (via M.2 3052)

Power Specifications:

  • Power Requirement: 9-36V DC In
  • Power Supply Type: Ø2.5 Lockable connector
  • Power Consumption (Typical): 96.6W (8.05A@12V)

Environmental:

  • Cooling: Passive cooling (fanless)
  • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
  • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)

Package and Longevity:

  • Net Weight: 1 kg
  • Gross Weight: 1.5 kg
  • Package Dimensions: TBD
  • HS Code: 8471500000
  • Country of Origin: Taiwan
  • Longevity: 2027

Accessories Included:

  • Screw bag for VESA mount, 2 x Wi-Fi antenna, 2 x Plug & push terminal block, 1 x 120W power adapter, 2x Power cord (EU & USA)

1,990.00 € 1990.0 EUR 1,990.00 € Tax Excluded

Not Available For Sale
