Catered specifically for Industry 4.0, manufacturing, and logistics sectors. This version is optimized for industrial applications and streamlining production processes.

System:

• SandBoxOS, Software Center, and OTA

Communication:

• EMQX MQTT or Mosquitto or TBMQ, Kafka, and RabbitMQ

Monitoring:

• cAdvisor, Grafana, and Prometheus

DataBase / QL:

• GraphQL, PostgreSQL, and FerretDB

IoT:

• Sensor and Actuator Connectors, IoTool, OPC-UA, SparkPlug-B, and ThingsBoard

Automation /Dev:

• Node-RED

AI:

• Jupyter Notebook and TensorFlow

Tools:

• Certificates, Code Server, File Browser, KeyCloak, Proxy Manager, Portainer, and Terminal

More…

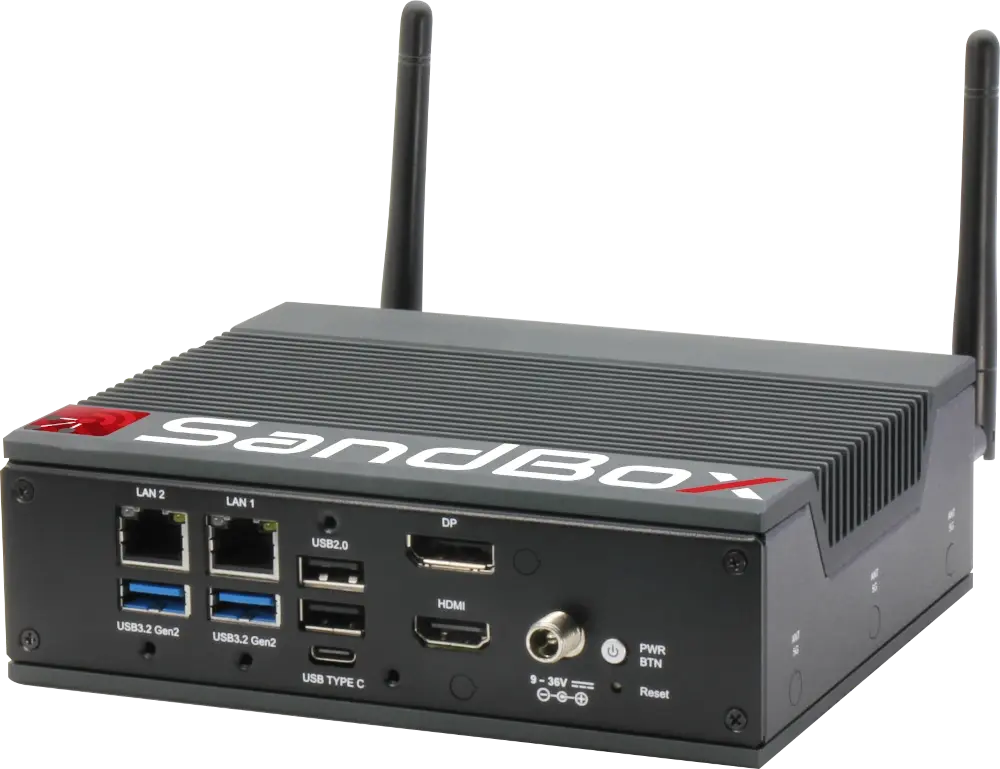

General Specifications:

• Mainboard: Intel® NUC 12 Compute Element i5, 8GB LPDDR5
• Processor: Intel® Core™ i5-1235U Processor (up to 4.40 GHz)
• Graphics: Intel® Iris® Xe Graphics
• Memory: 8GB
• Storage: 256GB M.2 PCIe Gen 4 x4 SSD
• BIOS: UEFI
• Real-Time Clock (RTC): Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: TPM2.0 on board
• Dimensions: 5.98” x 4.9” x 1.8” (152 x 125 x 48mm)
• Mounting Options: VESA mount, Optional wall mount

Operating System:

• SandBoxOS

Display and I/O Ports:

• Display Ports: 1 x HDMI 2.0b, 1 x DP 1.4, and 1 x DP 1.4a via USB Type C
• USB Ports: 2 x USB 2.0 Type A, 2 x USB 3.2 Gen2 Type A, 1 x USB 3.2 Gen1 Type C (Supports DP)
• Audio Ports: 1 x Mic-in, 1 x Line out
• Serial Port: 2 x RS-232/422/485 via 16-pin header

Expansion and Connectivity:

• Expansion Slots: 1 x M.2 3052 B-key, 1 x M.2 2280 PCIe Gen 3 x2 M-key, 1 x M.2 2280 PCIe Gen 4 x4 M-key
• GPIO: Isolated GPIO 8 in/8 out pin header
• Ethernet: 1 x GbE (Realtek RTL8111H), 1 x GbE (Intel® i219-LM), 1 x 2.5GbE (Intel® i225-IT)
• Wi-Fi: 802.11ax, 2T2R, Intel® AX211 Wi-Fi 6E
• Bluetooth: Bluetooth 5.3, Intel® AX211 Wi-Fi 6E
• LTE / 4G / 5G: (via M.2 3052)

Power Specifications:

• Power Requirement: 9-36V DC In
• Power Supply Type: Ø2.5 Lockable connector
• Power Consumption (Typical): 96.6W (8.05A@12V)

Environmental:

• Cooling: Passive cooling (fanless)
• Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
• Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)

Package and Longevity:

• Net Weight: 1 kg
• Gross Weight: 1.5 kg
• Package Dimensions: TBD
• HS Code: 8471500000
• Country of Origin: Taiwan
• Longevity: 2027

Accessories Included:

• Screw bag for VESA mount, 2 x Wi-Fi antenna, 2 x Plug & push terminal block, 1 x 120W power adapter, 2x Power cord (EU & USA)
